We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services.

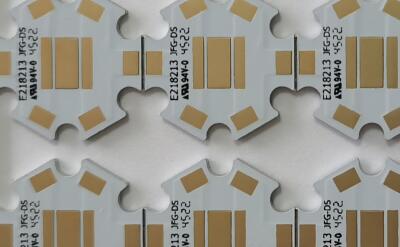

Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
| Category | Volume Production | Sample Processing | Advanced Capacity | |
|---|---|---|---|---|
| Layer count | 1-20L | 1-68L | 64 Layer | |
| Max thickness | - | 10mm (394mil) | 14mm (551mil) | |
| Min line width/space | Inner layer | 2.2mil/2.2mil | - | 2.0mil/2.0mil |
| Outer layer | 2.5/2.5mil | - | 2.2/2.2mil | |
| Max copper | - | 6Oz | 30 oz | |
| Holes size | Mechanical | ≥0.15mm(6mil) | - | ≥0.1mm(4mil) |
| Laser | 0.1mm(4mil) | - | 0.050mm(2mil) | |
| Max size | 850mm X 570mm | - | 1320mm X 600mm | |
| Material | Megtron6, Ro4350B, IT180A, 370HR, Polyimide, LCP, BT, etc. | |||
| Surface finished | HAL, HAL-LF, ENIG, IMMERSION TIN/SILVER, OSP, GOLD FINGER, Hard/Soft Gold | |||

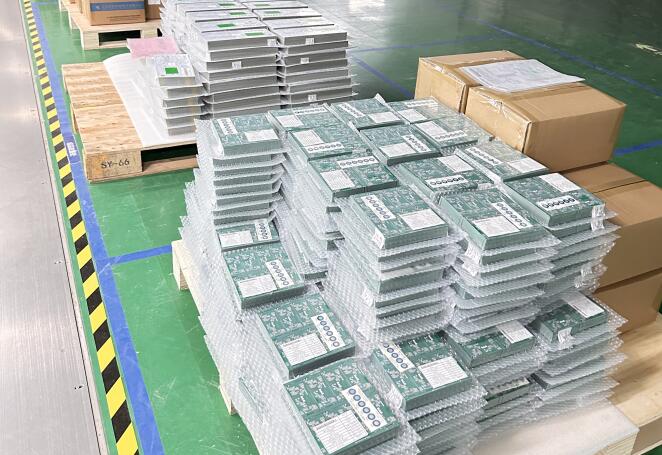

We ship PCB orders with the following options:
| Layer | Sample Shortest | Sample Standard | Mass Production |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10-12 layer | 4 days | 7 days | 14-16 days |
| 14-16 layer | 5 days | 8-9 days | 16-18 days |
| 18 layer | 7 days | 10 days | 18 days |
24h technical support & Gerber file handling.
Complete EQ within 4-8 hours.
Support for 400 new project engineering reviews.
Formats: RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, GC-CAM.
24-hour operation for all processes.
Monthly production of 10K+ high-mix part numbers.
Over 100 QTA orders daily.
One-step service from prototype to mass production.
