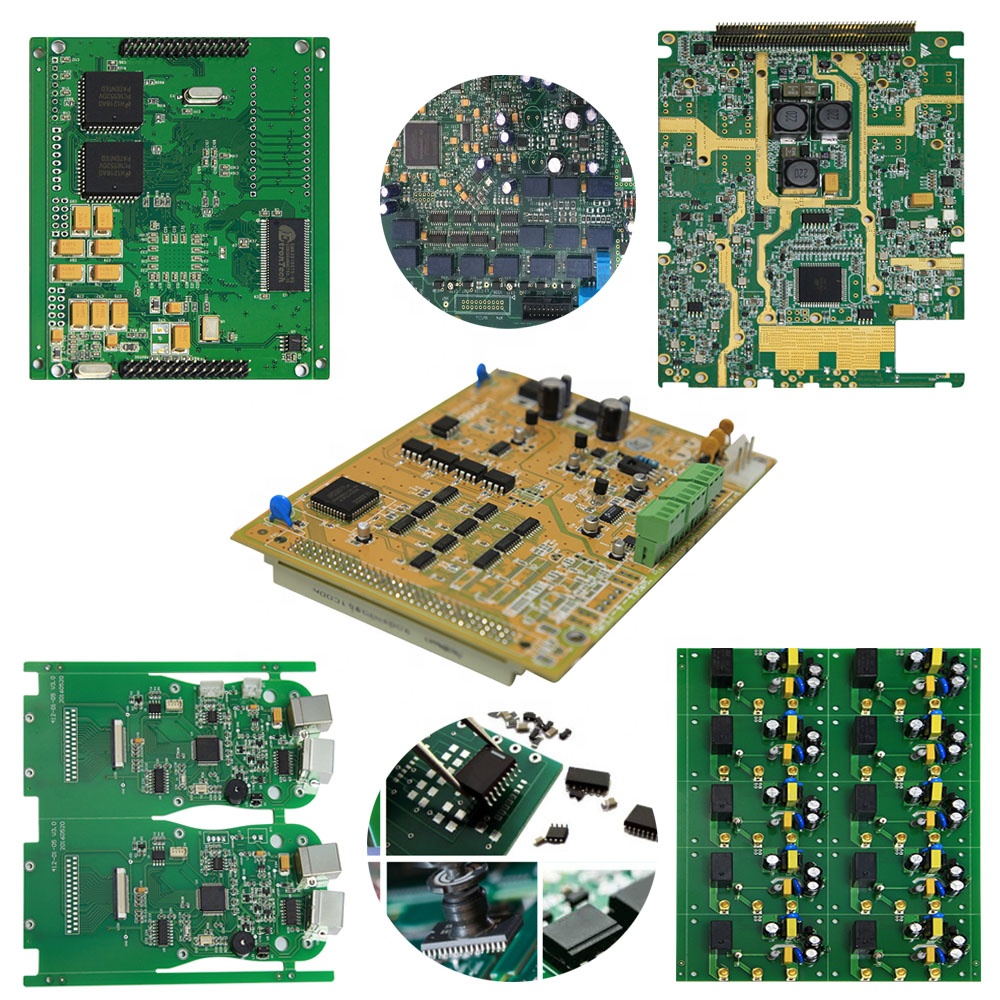

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services.
The product has eight parameter information. Please refer to the specific parameter requirements below:
| Rigid PCB Manufacturing Capability | |||
|---|---|---|---|
| Category | Volume production | Sample processing | Advanced processing |
| Layer count | 1-68L | 64 Layer | - |
| Max thickness | 10mm (394mil) | 14mm (551mil) | - |
| Min line width/space | Inner: 2.2/2.2mil | Outer: 2.5/2.5mil | 2.0/2.0mil |
| Max copper | 6Oz | 30Oz | - |
| Surface finished | HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard/Soft Gold Plating | ||
Quality Assurance:
| Layer | Sample Shortest | Sample Standard | Mass Production |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10-12 layer | 4 days | 7 days | 14-16 days |
