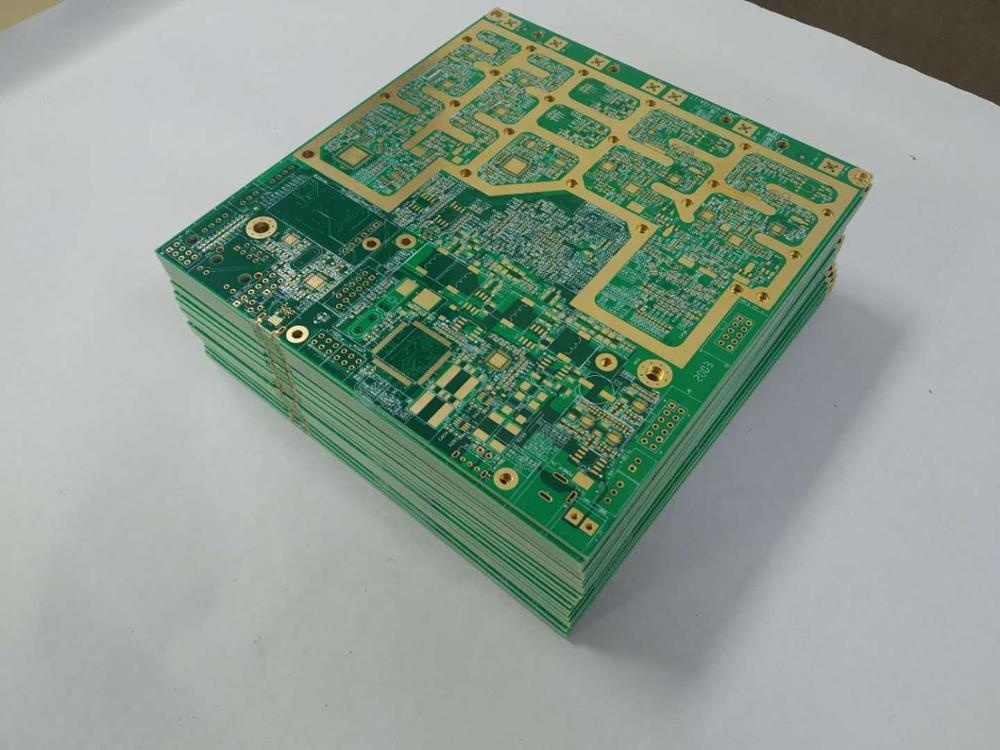

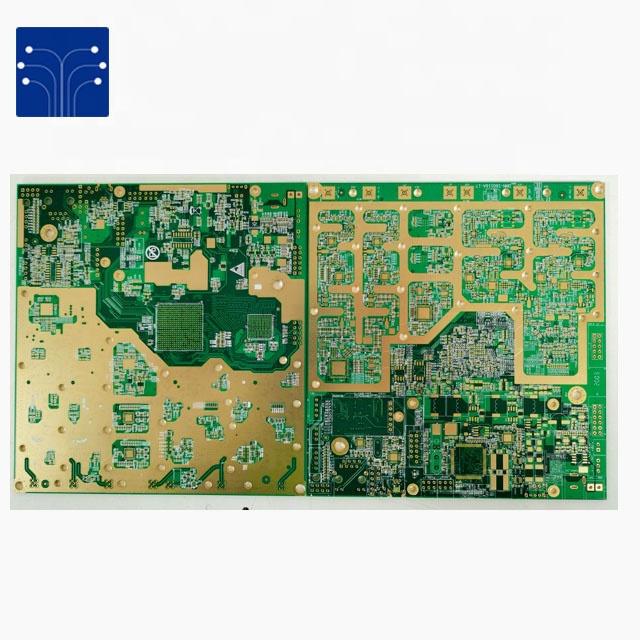

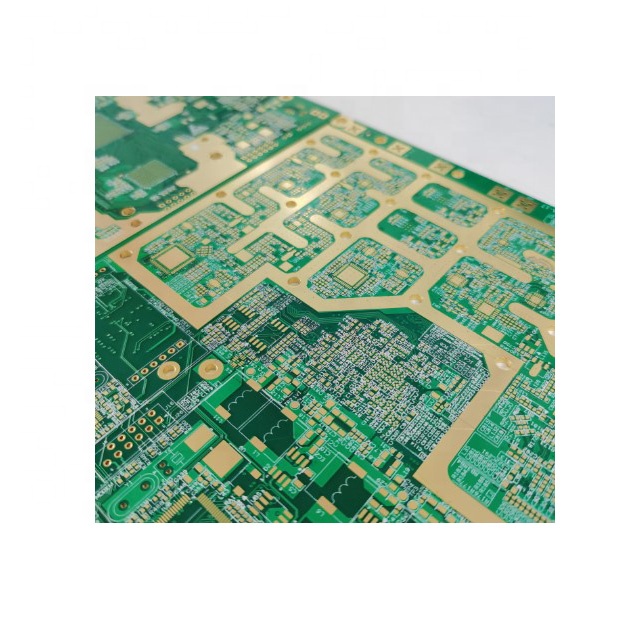

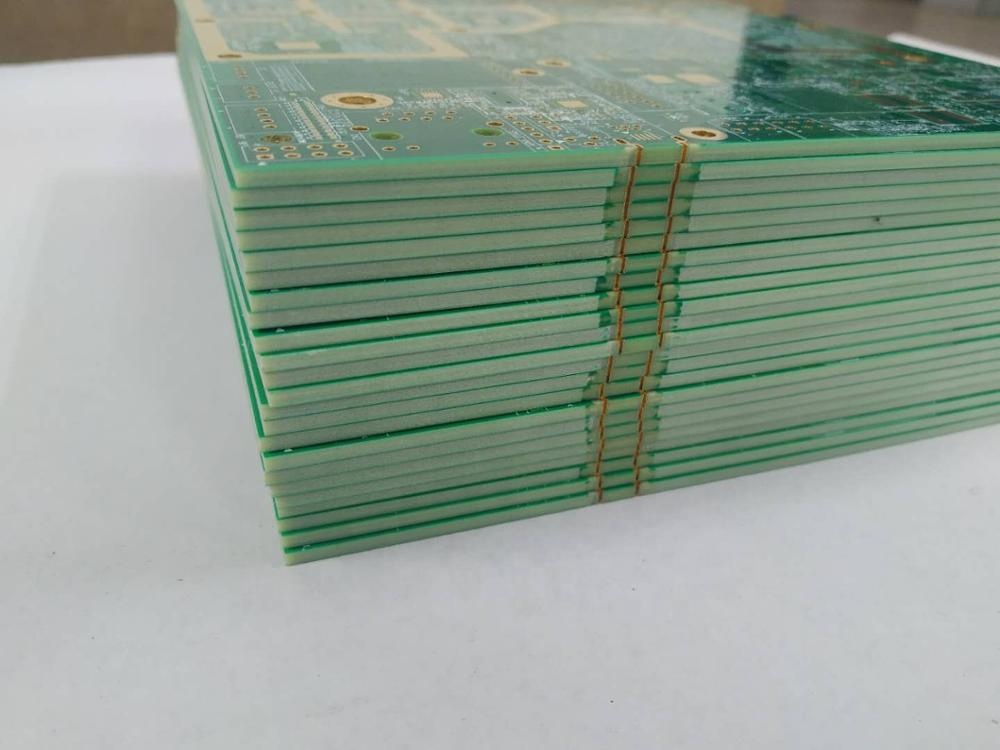

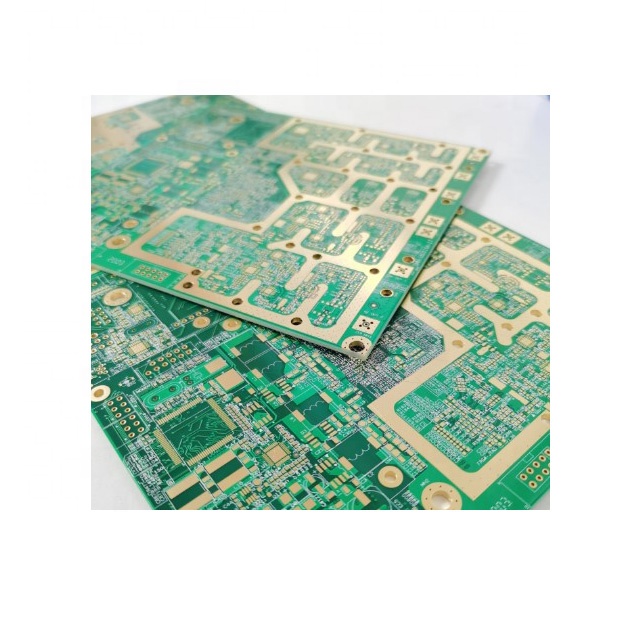

TOP PCB High frequency board pcb Shengyi FR4 High TG170 Rogers 4000 Mixed Pressure

1 / 5

TOP PCB High frequency board pcb Shengyi FR4 High TG170 Rogers 4000 Mixed Pressure

Send Inquiry

Product Description

About Us

Leading High-Density Multilayer PCB Manufacturer

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. Certified with UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we deliver top-quality products and customized solutions.

Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.

Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.

Main Products

Production Line and Equipment

Manufacturing Technique

Rigid PCB Manufacturing Capability
Category	Volume Production	Sample Processing
Layer Count	1-68L	64 Layer
Max Thickness	10mm (394mil)	14mm (551mil)
Min Line Width/Space (Inner)	2.2mil / 2.2mil	2.0mil / 2.0mil
Min Line Width/Space (Outer)	2.5mil / 2.5mil	2.2mil / 2.2mil
Alignment with Core Board	±25um	±20um
Inner Layer Alignment	±5mil	±4mil
Max Copper Weight	6 oz	30 oz
Mechanical Drilling (Min Hole)	≥0.15mm (6mil)	≥0.1mm (4mil)
Laser Drilling (Min Hole)	0.1mm (4mil)	0.050mm (2mil)
Max Unit Size	850mm x 570mm	1000mm x 600mm
Max Panel Size	1250mm x 570mm	1320mm x 600mm
Aspect Ratio (Unit)	20:1	28:1
Aspect Ratio (Panel)	25:1	35:1
Lead-Free / Halogen-Free Materials	EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF
High-Speed PCB Materials	Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933
High-Frequency PCB Materials	Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27
Other Materials	Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000
Surface Finish	HASL, HASL-LF, ENIG, Immersion Tin, OSP, Immersion Silver, Gold Finger, Hard Gold / Soft Gold Plating
Special Technologies	Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Mixed RF PCB, Busbar PCB

Quality Assurance

Strict adherence to the quality management system to ensure high-quality production for every PCB.
Operated under ISO 9001, ISO 14001, IATF16949, RoHS, REACH, UL, and CQC quality management standards.
Active involvement of all staff in full process control.
Uncompromising target and confidence in ensuring 100% product quality.
Shipping acceptance criteria strictly follow customer requirements and IPC standards.
Assisting customers in developing custom quality standards and cooperating on performance-enhancing experiments.

Laboratory Capabilities

Packing & Shipping

Standardized Shipping Solutions

We support multiple shipping modes to guarantee safe and timely delivery for all PCB orders:

Air Shipping (UPS, DHL, TNT, CTS, FedEx) Railway Freight Ocean Freight Customer Designated Shipping Methods

Layer Count	Sample Shortest Lead Time	Sample Standard Lead Time	Mass Production Lead Time
2 Layer	24 Hours	3 Days	6-7 Days
4 Layer	36 Hours	5 Days	8-10 Days
6 Layer	48 Hours	5 Days	8-12 Days
8 Layer	72 Hours	5 Days	9-12 Days
10 Layer	4 Days	7 Days	14 Days
12 Layer	4 Days	7 Days	16 Days
14 Layer	5 Days	8 Days	16 Days
16 Layer	5 Days	9 Days	18 Days
18 Layer	7 Days	10 Days	18 Days
20 Layer and Above	Negotiable	Negotiable	Negotiable

High Efficiency Team

Professional Engineering Team

24/7 Technical support available.
24-hour Gerber files handling and review.
Complete engineering queries (EQ) resolved within 4-8 hours.
Support for up to 400 new project engineering reviews.

Accepted CAD/CAM Formats

We fully accept and process various formats including:
RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM.

Professional Manufacturing Team

All production lines running 24 hours continuously.
Capacity to process more than 10,000 high-mix part numbers monthly.
Handling of more than 100 Quick Turn Around (QTA) orders daily.
One-step integrated service from prototype designs to full mass production.

Efficient Order Operation Center

24 hours rapid response time.
Fast quotations returned within 4 hours.

Certifications

Frequently Asked Questions

What types of PCBs are you capable of manufacturing?

We specialize in high-density multilayer PCBs (up to 68 layers), impedance control boards, high-frequency/high-speed boards, high TG thick copper boards, 5G high-speed boards, buried blind via boards, HDI, rigid-flex boards, and customized solutions.

What file formats do you accept for PCB designs?

We accept RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM file formats. Our engineering team reviews and handles Gerber files within 24 hours.

What is the fastest lead time you can provide for prototype samples?

Our shortest lead times for samples are 24 hours for 2-layer PCBs, 36 hours for 4-layer PCBs, and 48 hours for 6-layer PCBs. Times scale up appropriately based on complexity and layer counts.

What certifications do your PCB products meet?

Our manufacturing facilities and processes run under strict certification systems including UL, ISO 9001:2015, ISO 14001:2015, IATF 16949:2016, CQC, RoHS, and REACH.

Do you offer quick turn quotations and engineering support?

Yes, our order operations center provides quotes within 4 hours. Our engineering team runs 24/7 technical support and handles engineering queries (EQ) within 4 to 8 hours.

What options are available for shipping and logistics?

We ship worldwide via express air delivery (UPS, DHL, TNT, CTS, and FedEx), rail transport, or ocean freight. We also accommodate custom shipping arrangements based on customer preferences.
