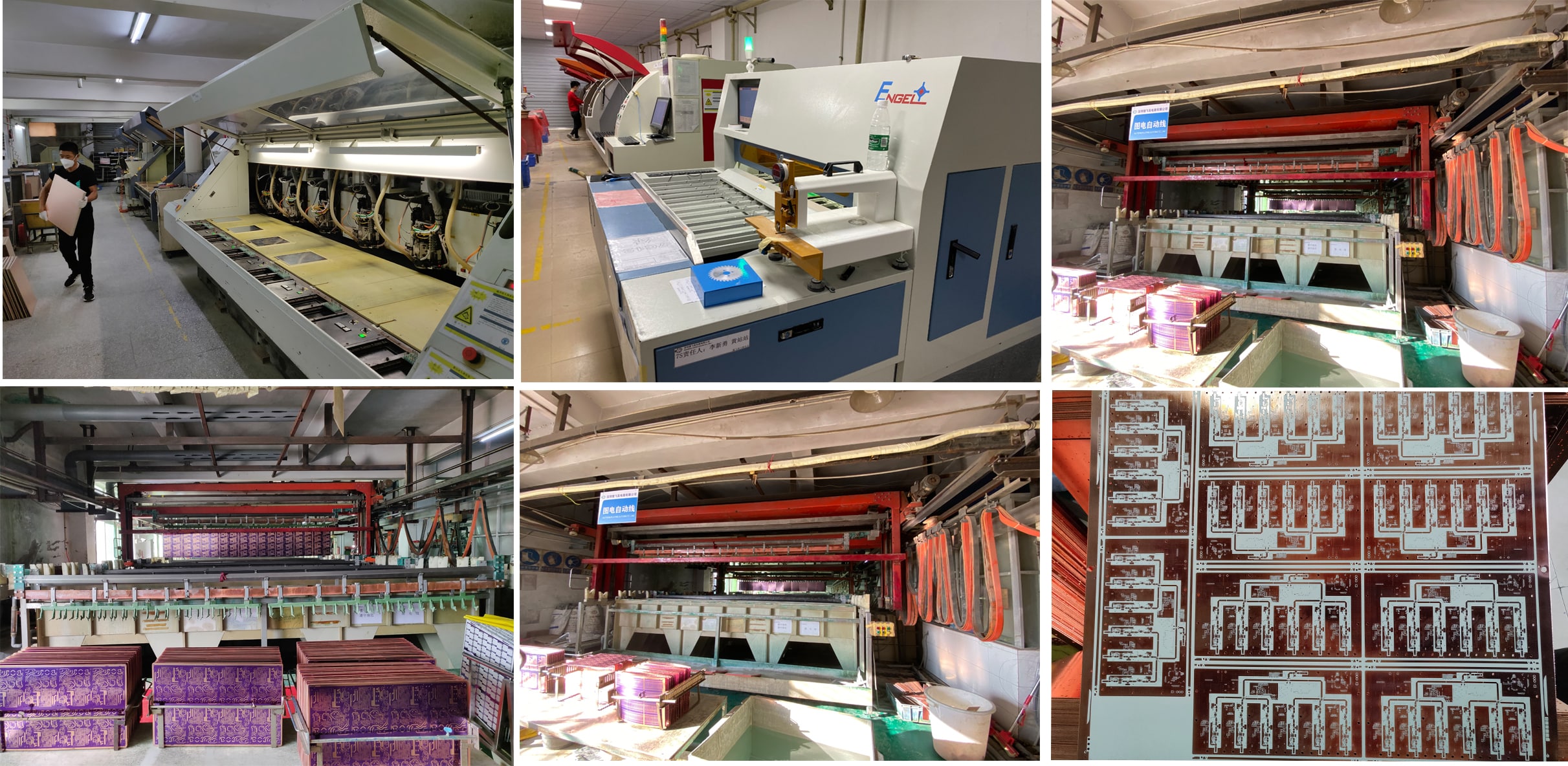

We have invested in the best equipment, environment and staff training. We have a production capability for standard and HDI, Rigid, RF and high frequency PCBs, together with through hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.
Professional PCB electronics manufacture services, every PCB enquiry or order is handled in the strictest of confidence. We can fabricate Laser holes, Impedance Control PCB, Buried & Blind Holes PCB, Countersunk hole, other special material or special process PCBs.

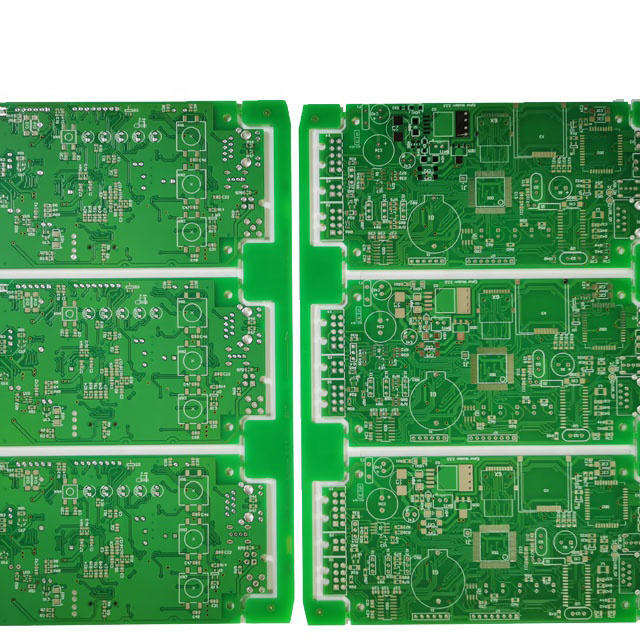

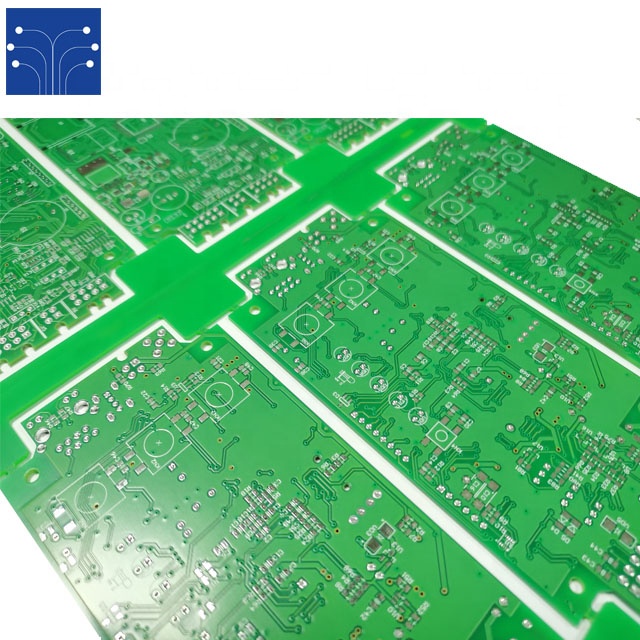

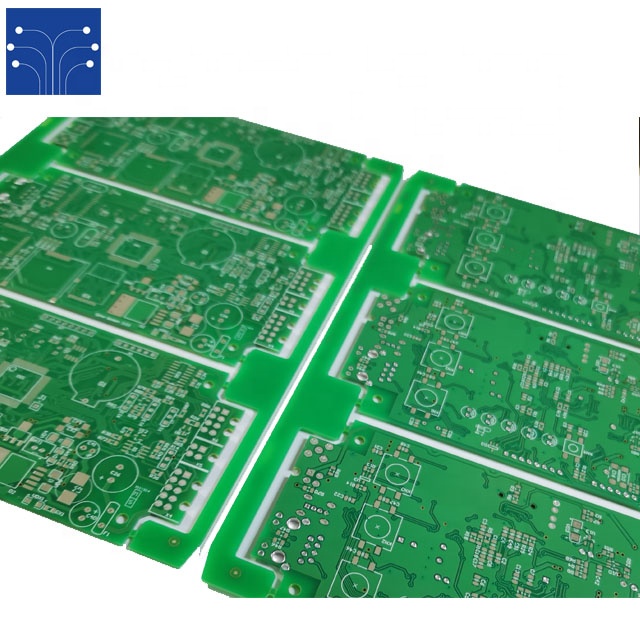

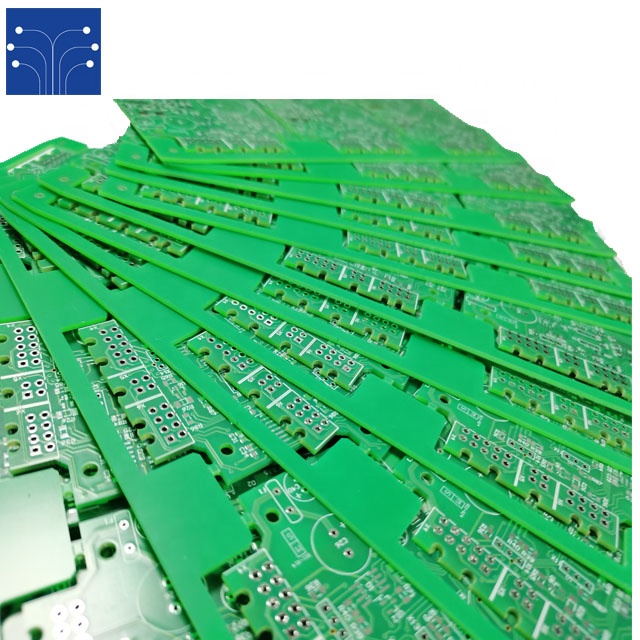

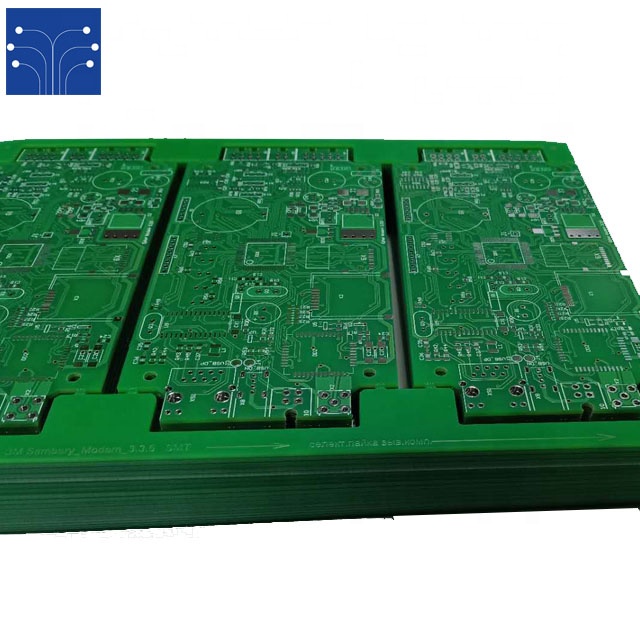

TOP PCB High frequency - Microwave Circuits Roger 4000+ FR4 Mixed Pressure
| Items | Capacity |
|---|---|
| 1. Base Material | Roger 4000+ FR4 Mixed pressure |
| 2. Layer / PCB Thickness | 6 Layer / 1.6mm |
| 3. Copper Thickness | 1oz copper |
| 4. Solder Mask / Silkscreen | Green solder mask / White silkscreen |
| 5. Surface Finished | Immersion gold |
| 6. Min Width / Space | 4.5 / 3.5 mil |
| 7. Min Holes | 0.2mm |
| 8. Technics Characteristic | Trace width ± 10 % |
| 9. Technical Requirement | Process difficulty: Roger 4000+ FR4 Mixed pressure, IPC class II standard. |
| Standard Produce Time | 9-12 days |
| Fast Produce Time | 24h ~ 90h |
| Payment and Shipment |
1) By T/T bank (wire transfer) 2) By Western Union 3) By Paypal (especially for samples) 4) By Cash |
We have established a quality system with ISO9001 and strictly implement the IPC class III standard to inspect the quality. 100% inspection includes electric test and AOI inspection. It can carry out high voltage test, impedance test, microsection, weldability test and other professional tests to keep up with more demands from users of high-tech products.
We have been manufacturing printed circuit boards for more than 20 years, established in 1990. As a PCB manufacture supplier of world competitive, high tolerance, high quality, small to medium volume production quantities. Whether it is a prototype printed circuit board assembly or large volume PCB production, we have the capacity and the knowledge to satisfy all of your printed circuit board production requirements.
We pride ourselves on a professional service with a friendly approach where quality is of paramount importance, in accordance with our ISO9001 Quality Management system and UL Approval.
We specialize in Printed Circuit Board Manufacturing and Quick turn PCB Prototype Fabrication. We specialize in Quick turn PCB services with an industry leading turnaround time as fast as 24 hours. When your company needs fast and rapid PCB prototyping, you can count on us to deliver high quality printed circuit boards on time with competitive pricing.
We encourage all prospective clients to pay us a visit, we offer an open door policy for all customers both new and old, and believe that once you’ve seen our facility and talked to our expert staff you’ll have no doubts over our ability to meet your individual needs. We look forward to working with you to produce high quality PCB's at a competitive price.
We have over 15 professional engineers, all the products are tested OK before warehousing and shipping.
We have always kept a large stock of products. When you need to buy and repair parts, it is our pleasure to serve you. We look forward to building a good business relationship.
We are not only trying to give customers a good product, but also paying attention to offering a complete and safe package. And here we prepare some personalized services for all orders.
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Carton outside according to the requirements of customers printed with the customer's specified information, marks, destination and other details.
We provide one-stop PCB/PCBA customization services. To meet all of customer's PCB/PCBA requirements is our goal.
